In order to understand the internal loads of an aircraft or rocket fuselage, it is necessary to understand the mass distribution of the vehicle and use the inertial load to estimate accurate shear, bending, and axial forces.
Traditionally static analysis is completed by summing the forces and moments on a beam equal to zero, solving the external reactions, and then drawing shear and bending moment diagrams. However, a fuselage in flight has no external reactions. Instead we use Newton’s second law including the inertial term, but instead treat the inertial load as another applied force in a static analysis.
Above is a sample I created to understand this problem without the complexities of a full vehicle. I also created an equivalent beam model in ANSYS Mechanical using Inertia Relief to obtain the static solution to compare my hand calculations. The beam is 3 meters long, with a cross section of 10cm x 10cm, and a linear density of .
To account for the inertial load its first necessary to quantify the rigid body acceleration of the structure.
As expected the beam will have a rigidbody acceleration in the negative Y direction. The next step is to properly apply the inertial load to the beam to create a static model that can be analyzed for shear and bending. The inertia load must satisfy equilibrium by balancing net forces and moments applied to the vehicle.
We know the mass of the beam is uniformly distributed, so at first glance you might suspect the inertial load to be a uniform distributed load of magnitude , this solution satisfies translational equilibrium, but it does NOT satisfy moment equilibrium because the net moment would act at the CG and be unable to provide the necessary . This is shown in the figure below.
To derive the correct inertia distribution we must satisfy translational equilibrium in addition to moment equilibrium with our added inertial force distribution. First we must recall that inertia is defined as the product of mass with acceleration. For this particular problem the mass distribution is uniform, i.e, mass per unit length is constant. However, we cannot say the same about acceleration. The entire system moves as a rigidbody with a linear acceleration, but it is also rotating, so we must account calculate the additional linear acceleration each part of the beam feels.
where is the rigidbody rotational acceleration, and is the moment arm measured from the center of gravity.
Using this distribution results in a beam with the following applied loads:
Plotting the shear, moment, and bending diagram for the loading condition:

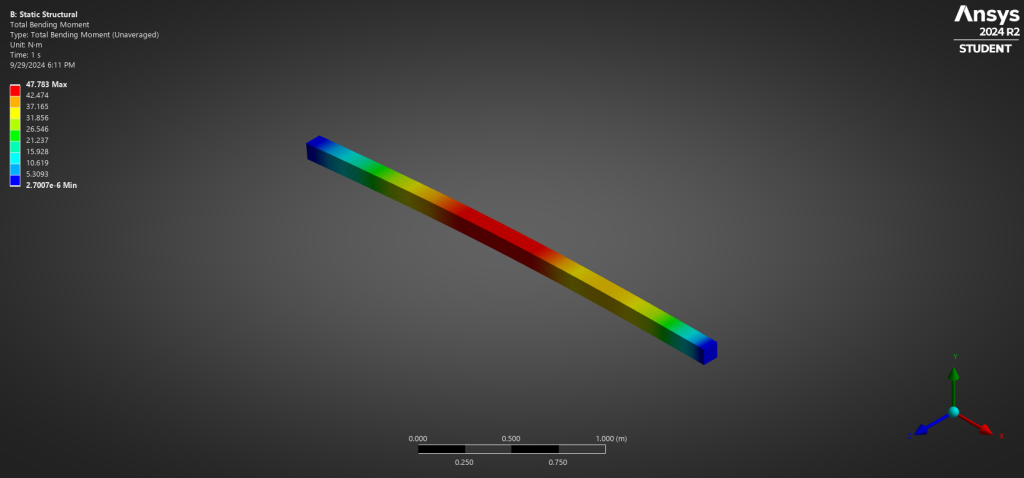

Comparing with ANSYS Mechanical model with inertia relief:
I needed to find the profile of an air conditioning duct that goes through a wall at a 45 degree angle to create a trim piece. Intuitively this will become an ellipse so the equation of an ellipse will be my starting point.
The question then is what are the semi-major axis a, and semi-minor axis b. The semi-minor axis will remain constant because there will be no stretching in the vertical direction. The semi-minor constant will remain equal to the radius of the original pipe.
Thinking of the semi-major axis I know that as the angle increases towards 90 degrees, the semi-major axis approaches infinity. Below I’ve drawn a slice of the pipe viewed from above with a depiction of what happens when the cross section is rotated by some amount (simulating the profile through the wall at an angle).
In the figure, d is the diameter of the pipe, and theta is the angle which the pipe is rotated with respect to the wall. As seen in the figure the hypotenuse of the right triangle is actually twice the semi-major axis of the rotated profile.
Plugging back into the equation of an ellipse:
As theta approaches 90 degrees, cos(theta) approaches 0 resulting in the semi-major axis approaching infinity. I used the 12 1/4″ pipe diameter I needed, plotted the result and sent it to be used for a metal trim piece around the outside of the pipe. It turned out pretty good.
An astronaut is inside a cylindrical capsule with flat ends halfway between Earth and Mars. This capsule is made of stainless steel 5 millimeters thick, 1 meter in diameter, and 2 meters in length. The astronaut is estimated to emit 95 watts of heat to the air inside the capsule, which is at sea-level density of 1.225 kilograms per cubic meter. It is assumed the heat transfer coefficient between the steel cylinder and internal air is 4 watts per meter sq. per kelvin. Will they survive?
To answer this question I created a finite element model in MATLAB. As with any finite element code you must first mesh the geometry. Meshing consists of discretizing the geometry into a set of points, called nodes, that are connected to each other. It is also important for these nodes to be organized in a consistent manner so that neighboring nodes can be easily found. Once the geometry is meshed the heat transfer calculations can be performed and a solution for temperature distribution of the cylinder and temperature of the air can be found, answering the question if the astronaut will survive.
Meshing
All meshing will be with no thickness, it is assumed that because the walls are so thin the temperature difference from the outside of the wall to inside is negligible. To begin meshing I started with the base of the cylinder. The base of the cylinder is just a circle, and will be subdivided radially as well as circumferentially. From trigonometry a point on a circle of known radius R, and angle theta, is:
Iterating for n number of radial divisions and m number of circumferential divisions an array of nodes can be generated describing the bottom plate. This iteration will start from a single point, and then work its way outward to the final radius of the cylinder. The normal vector to each node will be important as well, but will be explained later.
% Generate Bottom Cap Nodes
n = 3; % Number of radial divisions
m = 20; % Number of circumferential divisions
bottomCapNodes = repmat(struct('Position',[0;0;0],'Normal',[0;0;0],'Temperature',0), n, m); % Initialize array of nodes
for i = 0:n
radius = cylinderDiameter/2/n * i;
for j = 1:m
angle = 2*pi/m * (j-1); % j-1 so that I begin at angle 0
node.Position = radius * [cos(angle); sin(angle); 0];
node.Normal = [0; 0; -1];
node.Temperature = T0;
bottomCapNodes(i+1,j) = node; % i+1 for one-based indexing
clear node;
end
end
Next I generated the length section of the cylinder. Just as before I will iterate circumferentially, but now instead of radially I will iterate along length. The normal will be equal to the unit vector from the center of the cylinder at length L to the point on the circle.
% Generate Length Nodes
n = 10; % Number of length divisions
m = 20; % Number of circumferential divisions
lengthNodes = repmat(struct('Position',[0;0;0],'Normal',[0;0;0],'Temperature',0), n, m); % Initialize array of nodes
for i = 0:n
length = cylinderLength/n * i;
for j = 1:m
angle = 2*pi/m * (j-1); % j-1 so that I begin at angle 0
node.Position = cylinderDiameter/2 * [cos(angle); sin(angle); 0] + [0; 0; length];
node.Normal = node.Position;
node.Normal(3) = 0;
node.Normal = node.Normal / norm(node.Normal);
node.Temperature = T0;
lengthNodes(i+1,j) = node;
clear node;
end
end
Finally the top cap nodes can be generated just as before with the bottom cap nodes. This time however the Z position will be equal to the length of the cylinder and I will instead iterate from the outside radius to a single point in the center.
Once all nodes are found I need to combine them into a single mesh, taking care to remove any overlapping nodes. Where the top and bottom caps meet the length portion of the cylinder there will be overlapping nodes, assuming that the circumferential divisions for both the bottom cap and length section are equal which is easy to enforce with code. Given that both have equal circumferential divisions I can ignore the final i column of the bottom cap nodes and just use the nodes created from the length section of the cylinder. Similarly for the top cap nodes I can ignore the first i column and just use the final i column of the length section of the cylinder.
Now I have a clean structured mesh with two index’s, I like to think of the i direction as a position from start, at the bottom center, to finish, at the top center, of the cylinder that works its self out radially, then up the length, and the back in radially. Then for each i the j direction represents the circumference at any i. Below are two plots that have their color interpolated based on i and j, one with edges and the other without. This helps visualize how the nodes are organized.
Color is interpolated from dark blue to yellow based on i and j for each node.
Heat Transfer Model
Now that the mesh is setup I can iterate every node and calculate the amount heat transfer. To quantify the heat transfer I start with the first law of thermodynamics:
The work term can be ignored since no work is being performed on or by the system. Replacing the energy term with the heat capacity of an object:
The heat transfer term at any node is going to be a combination of solar flux (radiation from sun), black body emission, convective heat transfer with the air, and conduction with the four surrounding nodes.
k is the thermal conductivity, Acs is the cross sectional area of conduction, T is temperature, σ is the Stefan-Boltzmann constant, As is the exposed surface area to solar radiation and convection with air, εIR is the infrared emissivity, α is the solar absorptivity, qsun is the solar flux at the cylinder, and Φn,ij is the angle between the surface normal and incoming solar radiation.
The distance x between nodes is approximated as the 3 dimensional distance instead of the distance in each coordinate direction. qsun is calculated using the inverse square law based on nominal Earth solar flux, it is around 850 W/m2. Acs is estimated as the thickness of the steel multiplied by distance between the two nodes of interest. As is estimated as the area surrounding the node of interest, this is nominally a rectangle, except when dealing with the caps or corners where it is instead portions of a circle of a combination of a portion of a circle and rectangle.
In addition to the heat transfer of the cylinder, the heat transfer of the air must also be considered. It is simply the sum of convection heat transfer from all nodes as well as the 95 watts emitted from the astronaut.
Transient Analysis
Finally to find the steady state temperature dQ/dt is divided by the terms on the right hand side of the equation and then multiplied by some small delta-t. Iterating through time with a small enough delta t will result in a numerical integration that predicts the steady state temperature distribution of the cylinder and the air within.
Results
After steady-state is achieved the air inside the cylinder reaches 360K. The steel reaches a peak temperature at the center of the cylinder of 408K, and a minimum temperature on each cap of 341K. This astronaut will most certainly not survive the trip.
